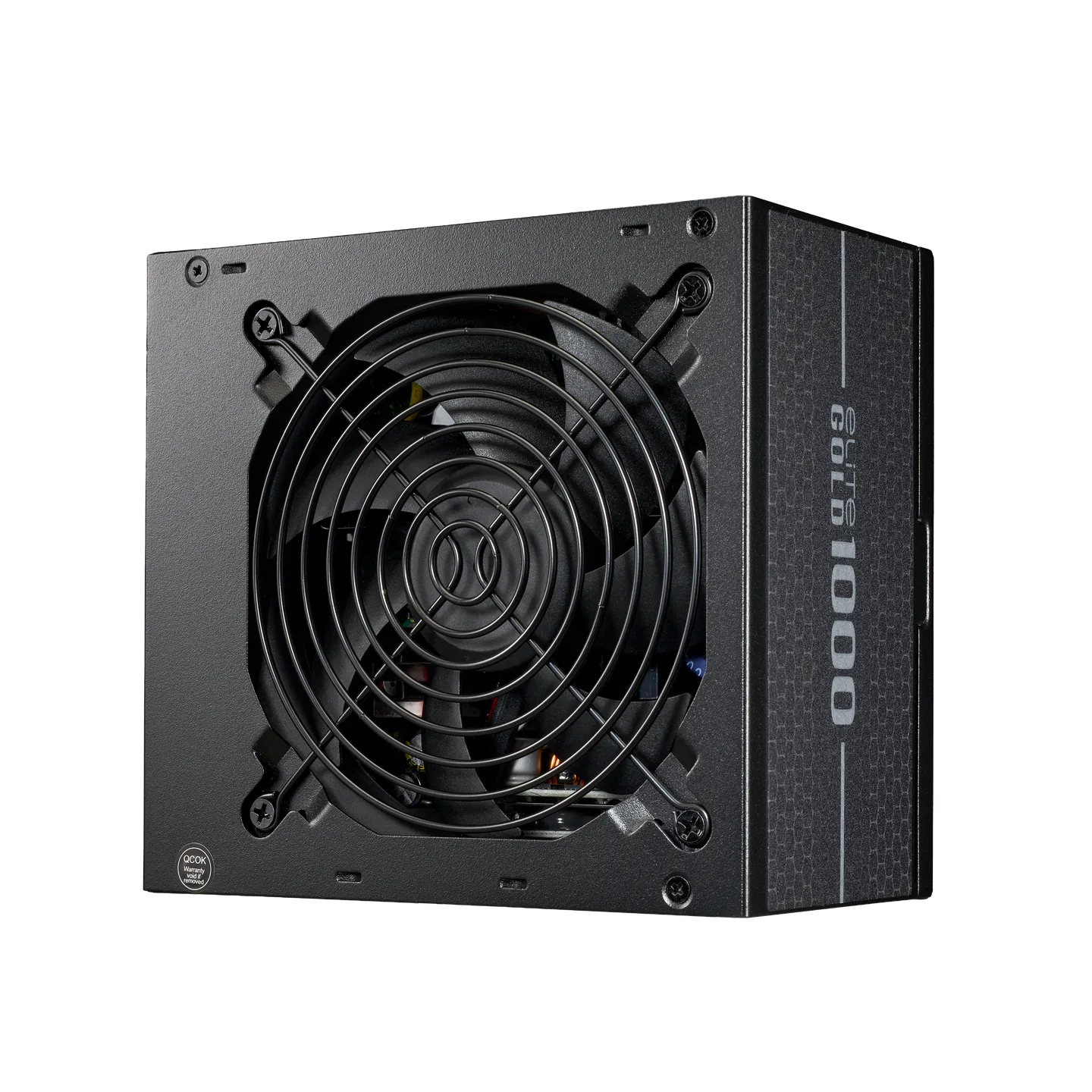

Name: COOLER MASTER ELITE GOLD 1000W F.M PCIE5 ATX 3.1
SKU: 3903
Price: 210000 IQD
Availability: OutOfStock

Product NameELITE GOLD 1000

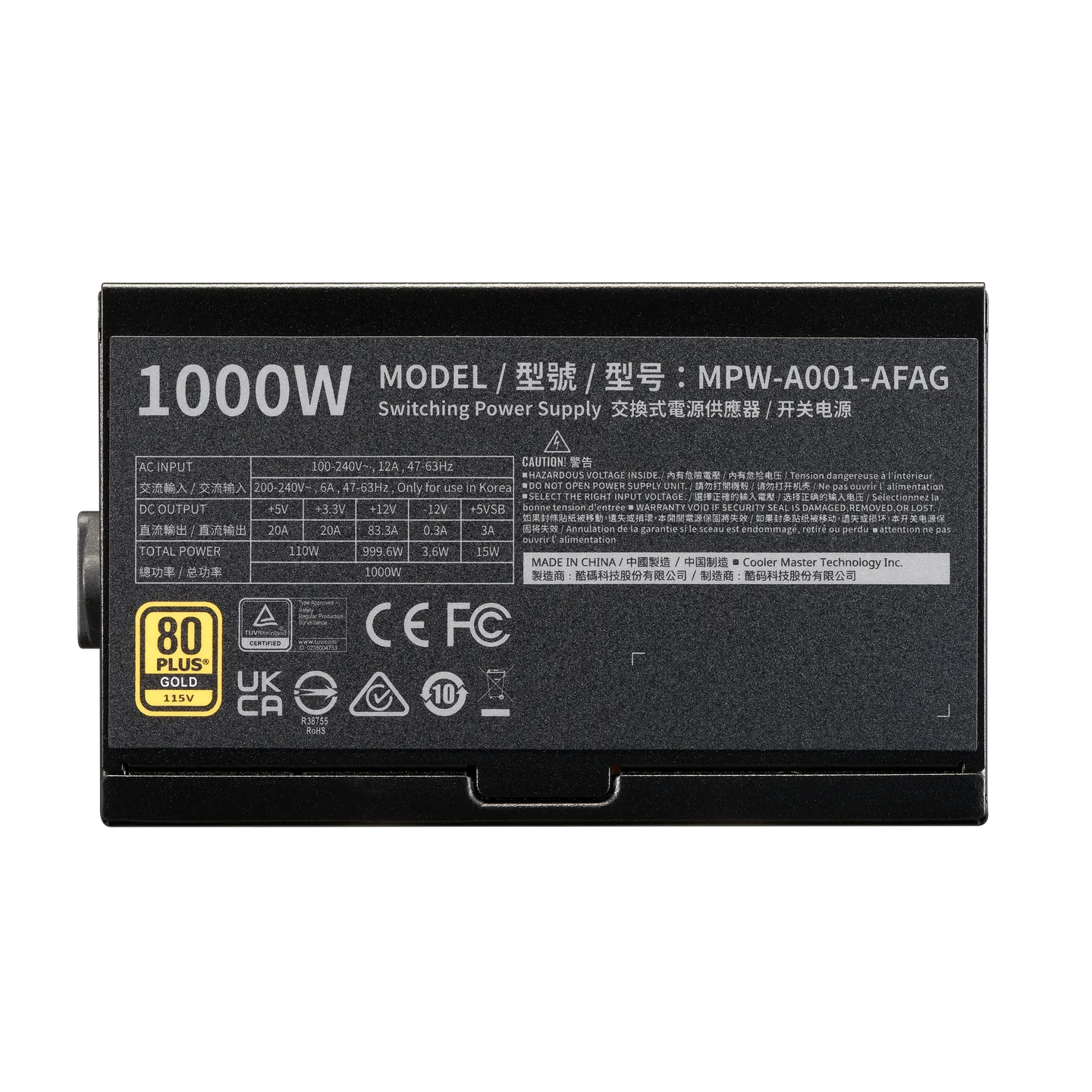

ModelMPW-A001-AFAG

ATX VersionATX 12V Ver. 3.1

PFCActive PFC

Input Voltage100-240V

Input Current6 ~ 12A

Input Frequency50-60Hz

Dimensions (L x W x H)140 x 150 x 86 mm

Fan Size120mm

Fan BearingFDB

Efficiency≥90% @ Typical Load

80 PLUS Rating80 PLUS Gold

ErP 2014 Lot 3Yes

Operating Temperature0-40°C

Power Good Signal100 – 150 ms

Hold Up Time≥16ms at 80% Load

MTBF>100,000 hours @ 25℃ ambient

ProtectionsUVP / OVP / OPP / OTP / SCP

RegulatorycTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH

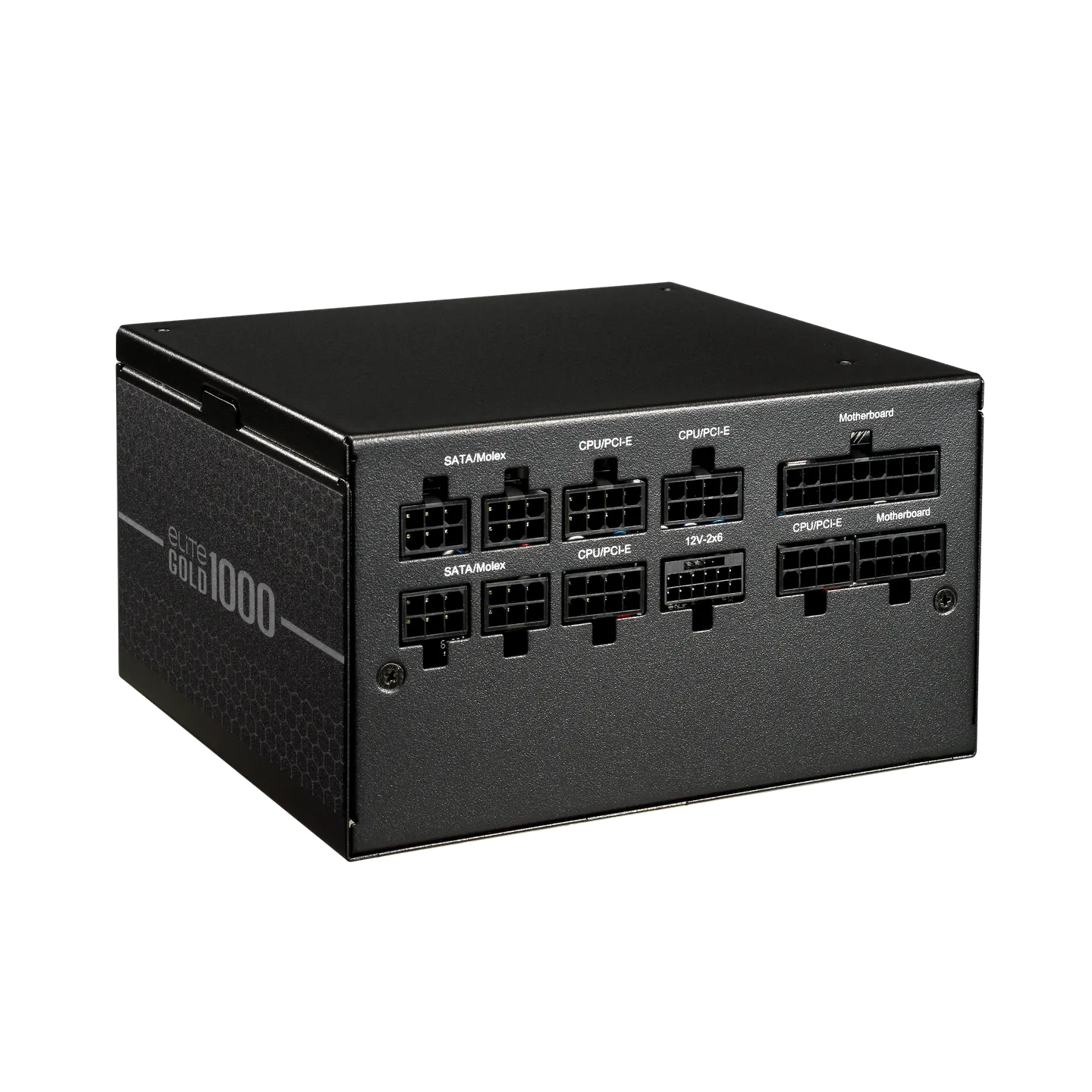

ATX 24 Pin Connectorsx1 = 1 (600mm)

EPS 4+4 Pin Connectorsx2 = 2 (700mm)

SATA Connectorsx9 = 3 (500+100+100mm)

Peripheral 4 Pin Connectorsx3 = 1 (500+100+100mm)

PCI-e 6+2 Pin Connectorsx6 = 3 (550+120mm)

12+4 Pin Connectorsx1 = 1 (600mm)

SeriesElite Series

Form FactorATX

Watts1000W

ModularFully Modular

80 Plus EfficiencyGold

Warranty10 Years

COOLER MASTER ELITE GOLD 1000W F.M PCIE5 ATX 3.1
