Name: COOLER MASTER ELITE GOLD 850W F.M PCIE5 ATX 3.1
SKU: 3880
Price: 145000 IQD
Availability: InStock

Product NameELITE GOLD 850

ModelMPX-8505-AFAG

ATX VersionATX 12V Ver. 3.1

PFCActive PFC

Input Voltage100-240V

Input Current6 ~ 12A

Input Frequency50-60Hz

Dimensions (L x W x H)140 x 150 x 86 mm

Fan Size120mm

Fan BearingRifle bearing

Efficiency≥90% @ Typical Load

80 PLUS Rating80 PLUS Gold

ErP 2014 Lot 3Yes

Operating Temperature0-40°C

Power Good Signal100 – 150 ms

Hold Up Time≥ 11ms @ 100% Load

MTBF>100,000 hours @ 25℃ ambient

ProtectionsUVP / OVP / OPP / OTP / SCP

RegulatorycTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0

ATX 24 Pin Connectorsx1 = 1 (550mm)

EPS 4+4 Pin Connectorsx1 = 1 (600mm)

EPS 8 Pin Connectorx1 = 1 (600mm)

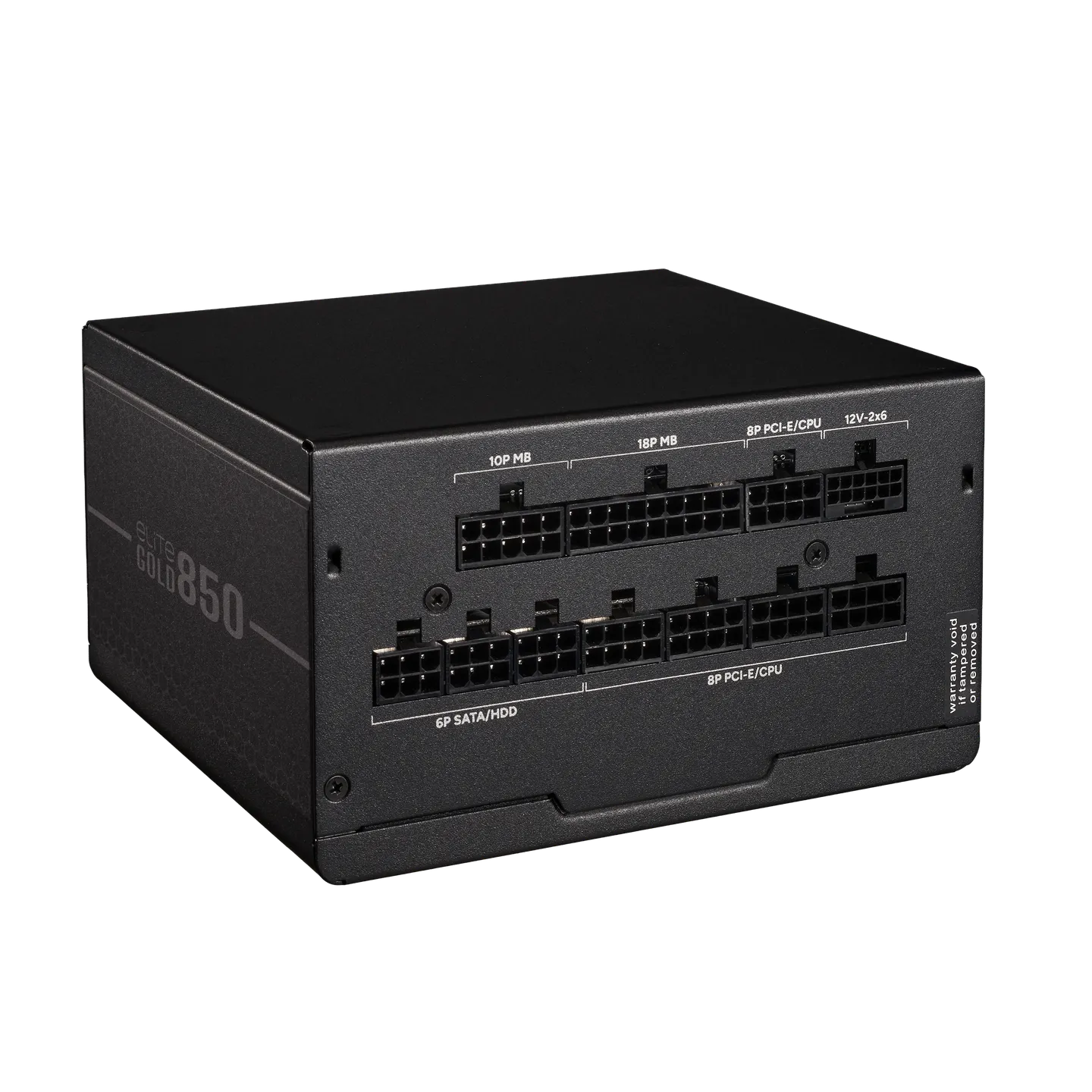

SATA & Peripheral 4 Pin ConnectorsX4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm]

PCI-e 6+2 Pin Connectorsx3 = 1 (500+120mm), 1 (500mm)

12+4 Pin Connectorsx1 = 1 (650mm)

SeriesElite Series

Form FactorATX

Watts850W

ModularFully Modular

80 Plus EfficiencyGold

Warranty10 Years

COOLER MASTER ELITE GOLD 850W F.M PCIE5 ATX 3.1
