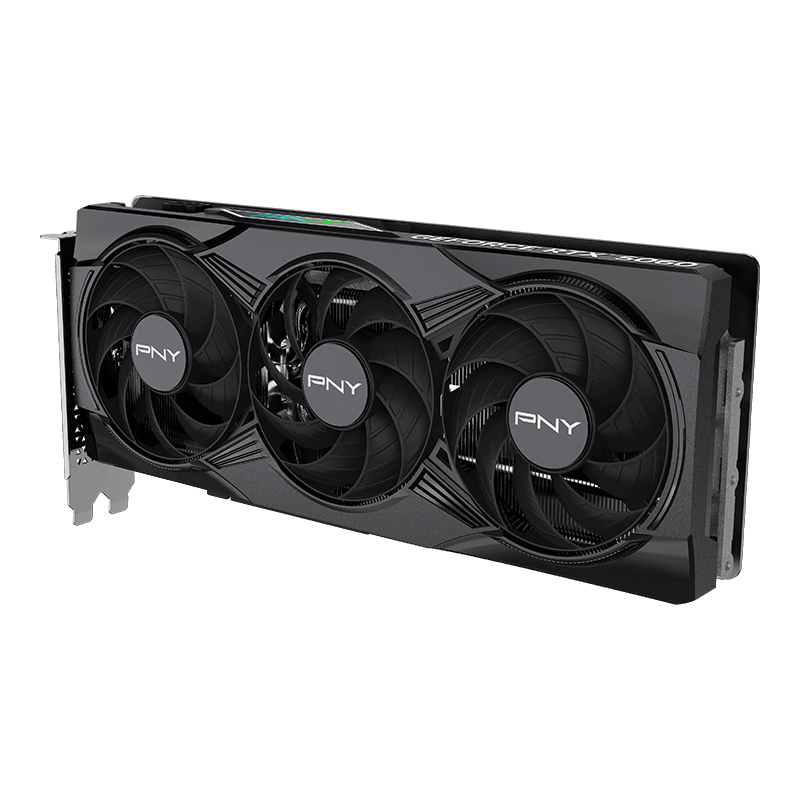

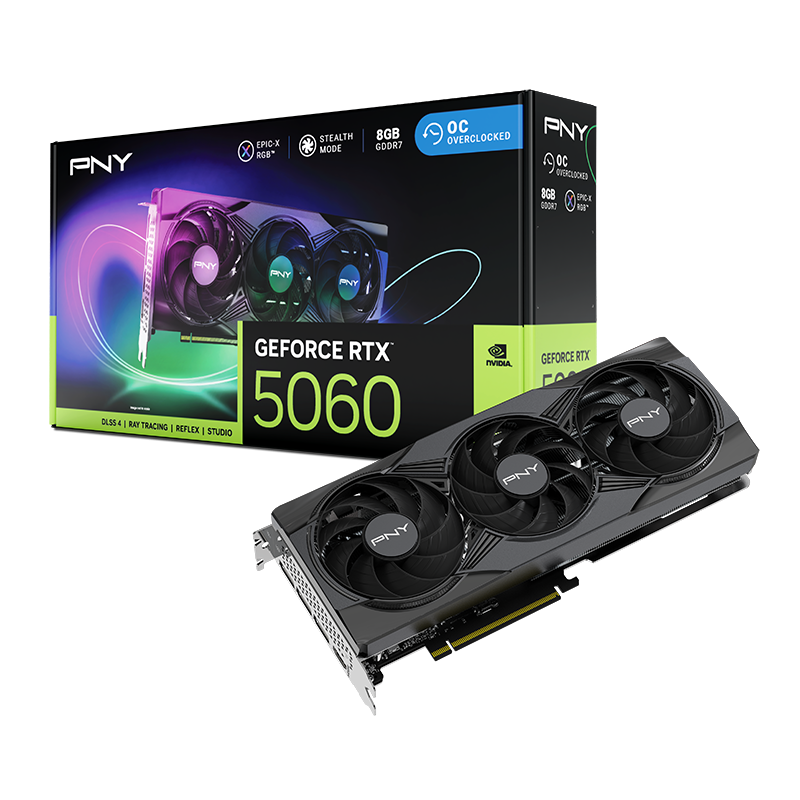

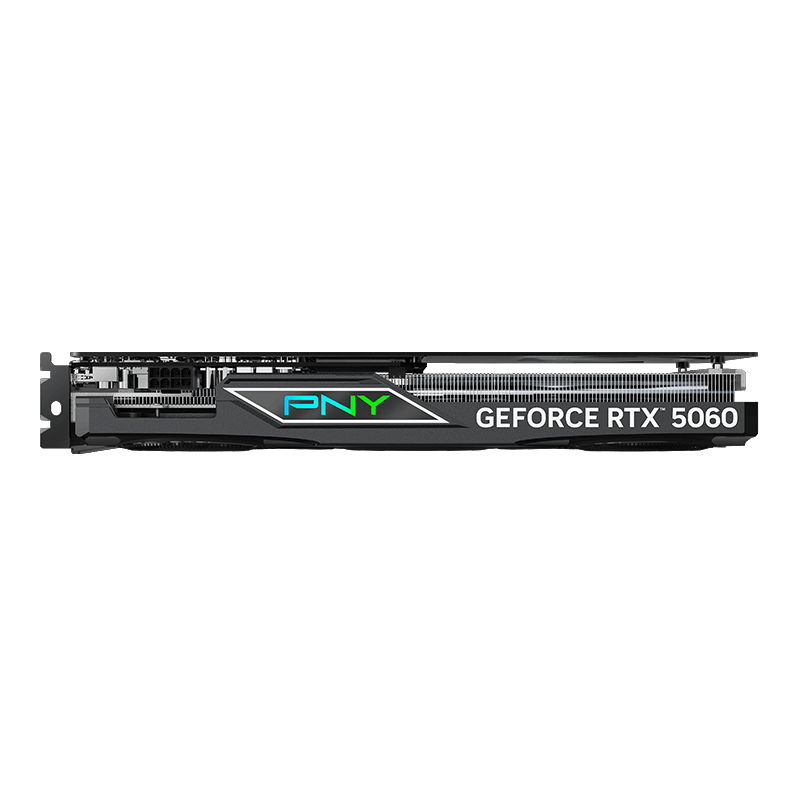

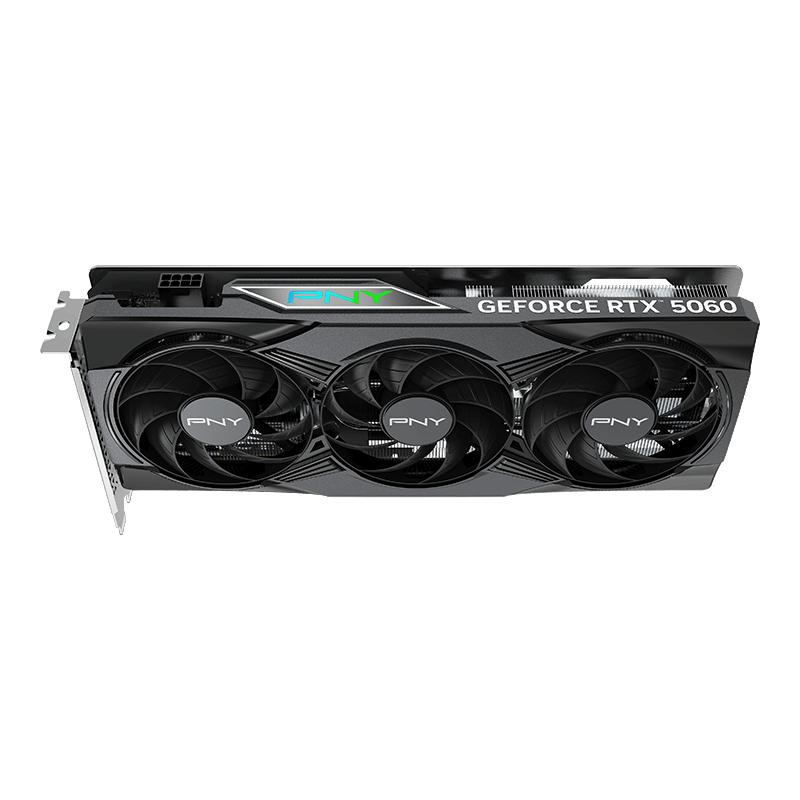

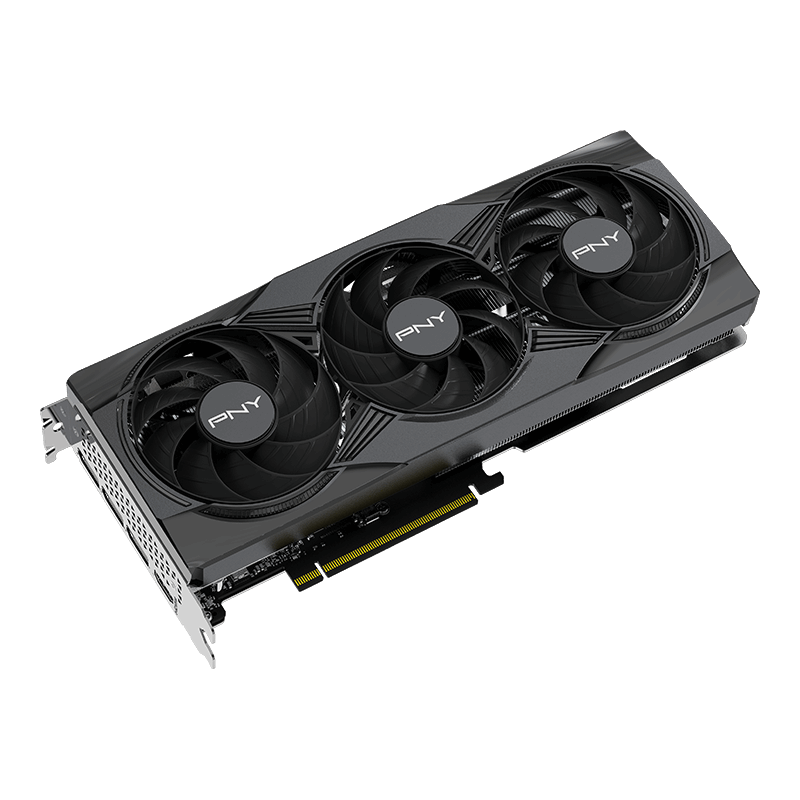

PNY RTX5060 8GB EPIC-X ARGB 3FAN

General Information

• Part Number: VCG50608TFXXPB1-O
• UPC Code: 751492797069

Architecture

• Architecture: Blackwell

Performance

• CUDA® Cores: 3840
• Clock Speed: 2280 MHz
• Boost Speed: 2580 MHz
• Memory Speed: 28 Gbps
• Memory Size: 8GB GDDR7
• Memory Interface: 128-bit
• Memory Bandwidth: 448 GB/sec
• TDP: 145 W

Connectivity

• NVLink: Not Supported
• Outputs: DisplayPort 2.1b (x3), HDMI® 2.1b
• Multi-Screen Support: 4 displays
• Resolution Support: 4K at 480Hz or 8K at 165Hz with DSC3

Power & Interface

• Power Input: 8-pin
• Bus Type: PCI-Express 5.0 x8

Physical Dimensions

• Card Dimensions: 280 x 120 x 40mm (11.02″ x 4.72″ x 1.57″) – 2 Slot
• Box Dimensions: 382 x 194 x 72mm (15.04″ x 7.64″ x 2.83″)
