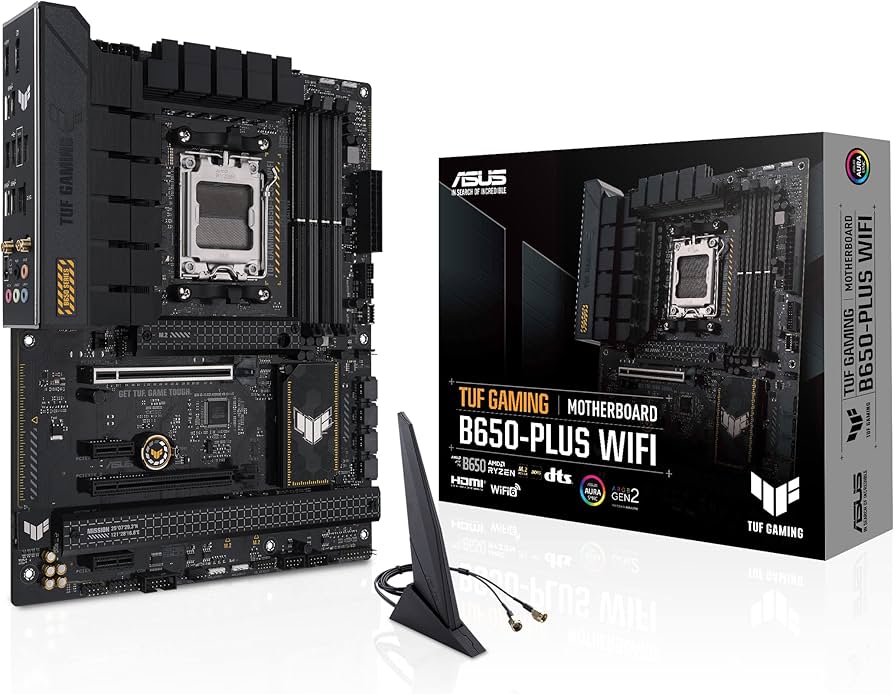

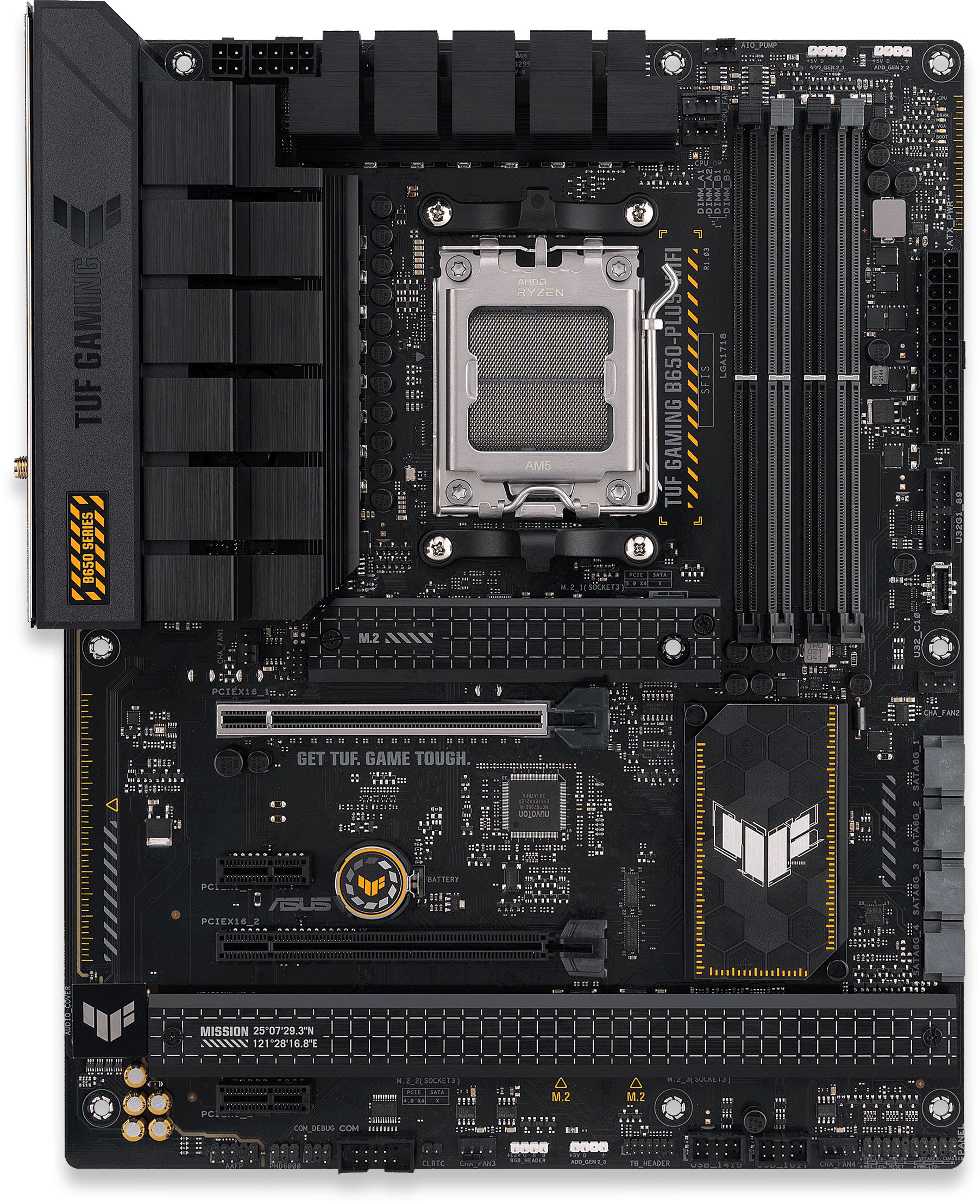

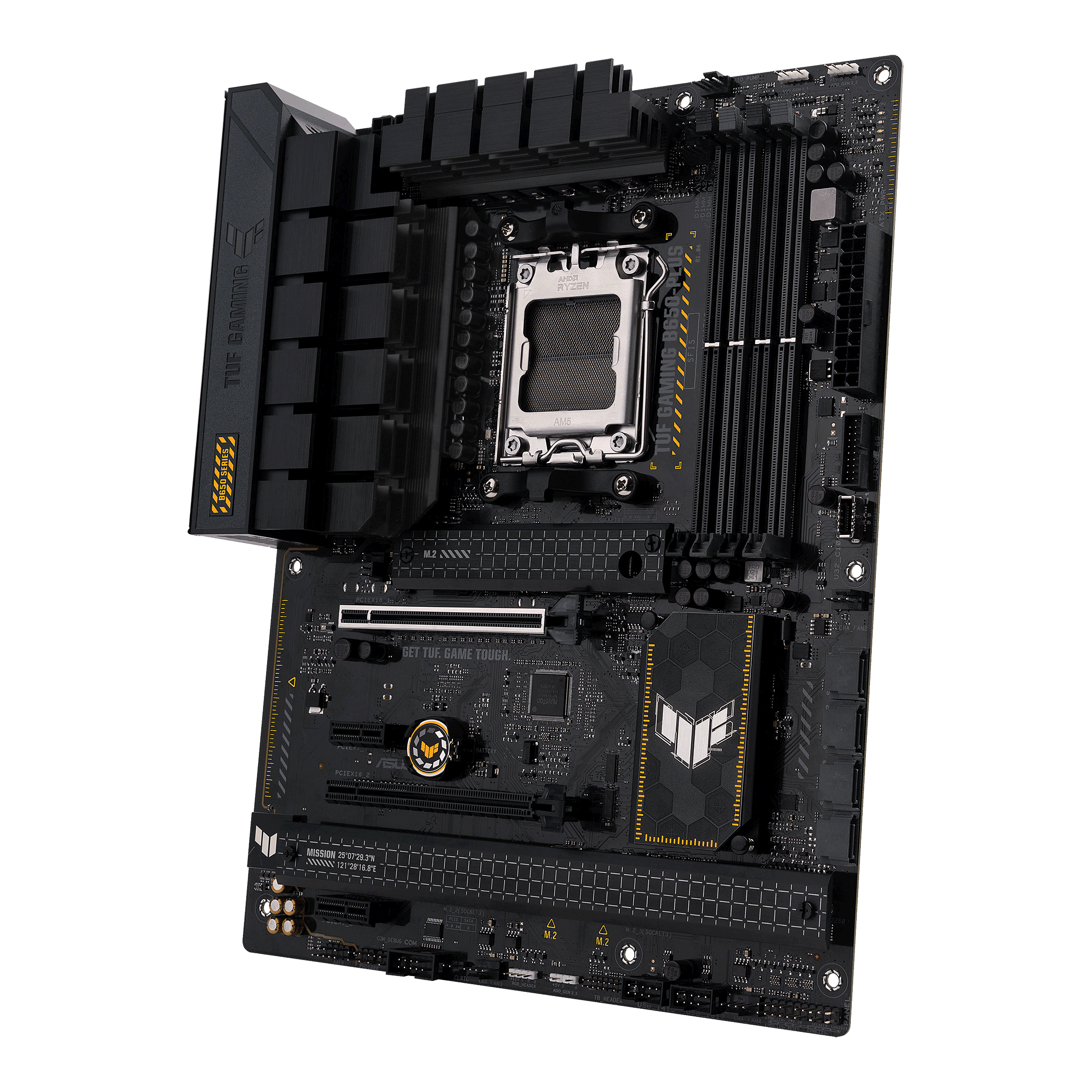

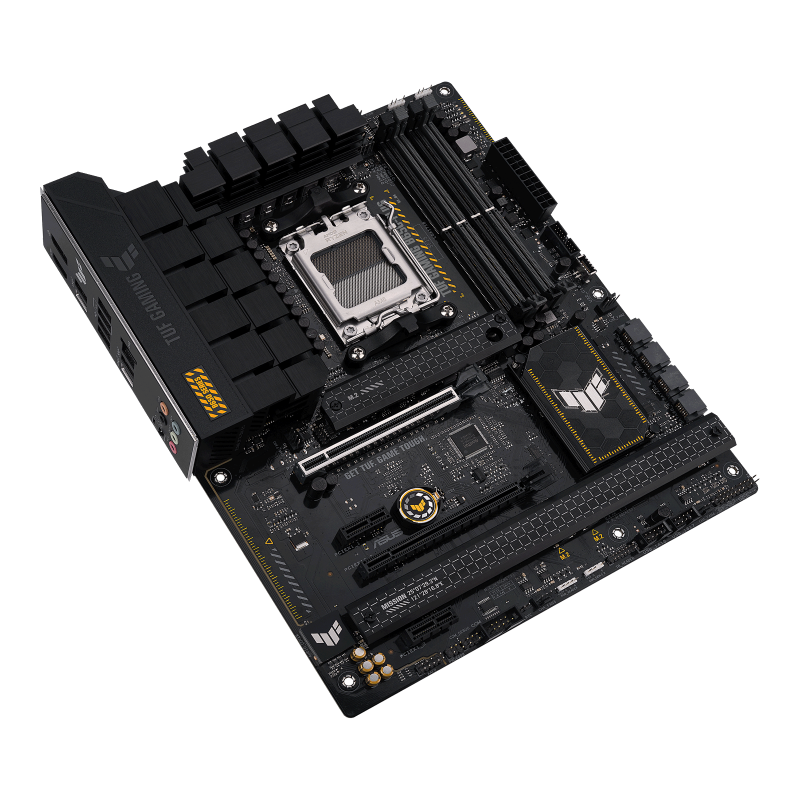

TUF GAMING B650-PLUS

Motherboard Specifications – TUF GAMING B650-PLUS

• Processor Support: AMD Socket AM5 for Ryzen™ 9000, 8000, and 7000 Series
• Chipset: AMD B650
• Memory Support: 4 x DIMM, Max. 128GB, DDR5 (Up to 7600+ OC), Dual Channel, Supports AMD EXPO™
• Graphics Ports: 1 x DisplayPort (8K@60Hz), 1 x HDMI® (4K@60Hz)
• Expansion Slots:
  • 1 x PCIe 4.0/3.0 x16
  • 1 x PCIe 4.0 x16 (supports x8/x4 mode, varies by CPU)
  • 1 x PCIe 4.0/3.0 x16 (supports x4 mode)
  • 2 x PCIe 4.0/3.0 x1
• Storage:
  • 3 x M.2 slots (PCIe 5.0/4.0)
  • 4 x SATA 6Gb/s ports
  • Supports RAID 0/1/10
• Ethernet: Realtek 2.5Gb Ethernet, TUF LANGuard
• Wireless & Bluetooth: Not specified
• USB:
  • Rear: 1 x USB 3.2 Gen 2×2 Type-C, 3 x USB 3.2 Gen 2 (2 x Type-A, 1 x Type-C), 4 x USB 2.0
  • Front: 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
• Audio: Realtek 7.1 Surround Sound, Jack-detection, Multi-streaming, Premium capacitors
• Internal I/O Connectors:
  • 3 x M.2 slots, 4 x SATA 6Gb/s
  • 1 x 24-pin ATX power, 1 x 8-pin +12V, 1 x 4-pin +12V
  • 1 x CPU fan header, 1 x CPU OPT fan, 1 x AIO pump, 4 x chassis fan headers
  • 3 x Addressable Gen 2 headers, 1 x Aura RGB header
  • 1 x Thunderbolt™ (USB4®) header

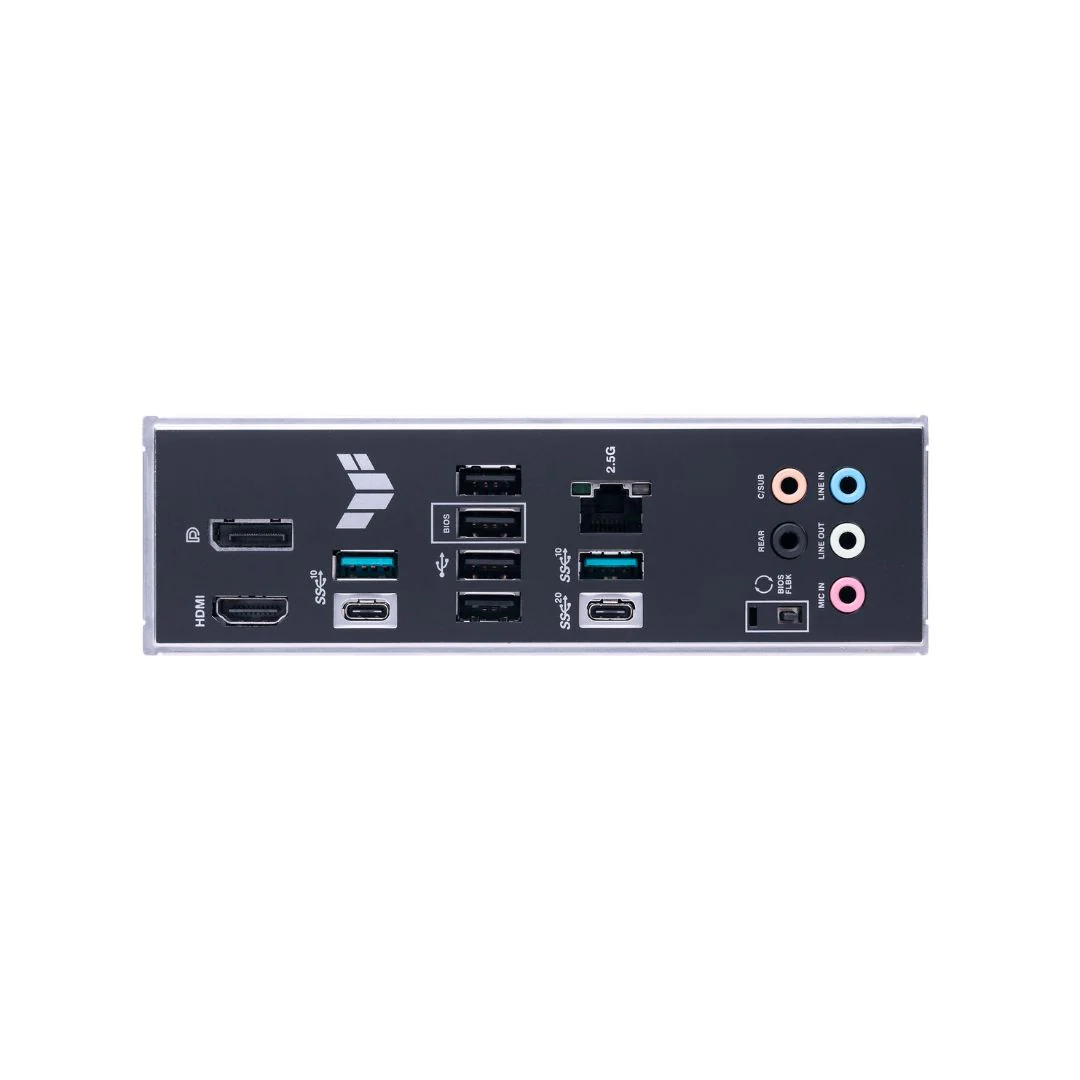

• Back Panel I/O Ports:
  • 1 x USB 3.2 Gen 2×2 Type-C, 3 x USB 3.2 Gen 2 (2 x Type-A, 1 x Type-C), 4 x USB 2.0
  • 1 x DisplayPort, 1 x HDMI
  • 1 x Realtek 2.5Gb Ethernet, 5 x Audio jacks
  • 1 x BIOS FlashBack™ button
• Form Factor: ATX (30.5 cm x 24.4 cm)
